Self-Centering Isolation and Test Tool

Self Centering Isolation and Test (SCIT) Tool

Provides a safe and efficient method for inline piping isolations and localized pressure testing of new welds.

Improve Operator Efficiency

Provides a safe and efficient method for inline piping isolations and localized pressure testing of new welds
Makes traditional system hydrotesting methods for piping modifications obsolete

Greater Usability & Coverage

The lightest weight tools with higher test pressure capacity than ANY OTHER mechanically actuated tools
Low profile, durable, aluminum construction
Allows ONE operator to lift isolate and test behind elbows and tees with standard tools

Lower Total Cost of Ownership

Dual-purpose isolation + hydrotest tools
Outperform other inline tools with more pipe schedules covered per tool
Inexpensive seals and seal backing rings

Patented Technology

Vital uses patented double block and bleed technology to achieve isolation and a positive barrier that is not only safe but verified by monitoring the pressure on the seal and behind the tool.

Vital’s proprietary technology provides a stronger and more reliable seal
Hydrodynamic capabilities keeps process piping cool for post weld heat treat
Safely weld on hydrocarbon lines with the peace of mind of a positive isolation
Test just the weld with relative ease up to 5000 PSIG

Patent # US 11,460,141 B2

GIVE YOURSELF AN ADVANTAGE WITH VITAL TOOLS

Self-Centering

Vital’s self-centring mechanism creates an operator-friendly experience and a consistent leak-free seal.

Minimal training as no specific bolt pattern is required
Cost-effective replaceable seals are schedule-specific

Fewer Tools to Manage

Compared to its competitors, Vital tools allow you to use fewer tools as all tools are Combination Isolation and Test Tools that accommodate multi-schedules via swapping out seals. The slim and lightweight design means no crane is required typically.

Double Block and Bleed Technology

Double block and bleed technology assures vapour-free isolation for hot work. Vapour is vented to a safe area, eliminating back pressure build-up. Achieve a positive hydrostatic barrier verified by pressure monitoring.

Save Water

You’ll also see significant water savings. Less than one litre of medium is required for a 24” test. The interchangeable seals can accommodate multiple schedules.

Elbow and Tee Applications

Slim design capable of elbow and tee applications (6” and above)
Able to test mismatched schedules

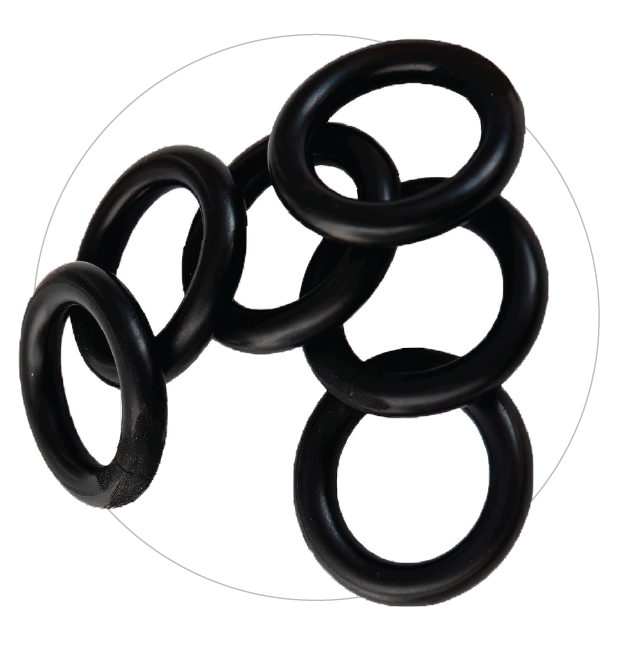

Interchangeable Seals

To Cover More
Schedules Per Tool

Cover More Schedules with the Same Tool

An example of 8 inch A & B Tools covering 11 schedules

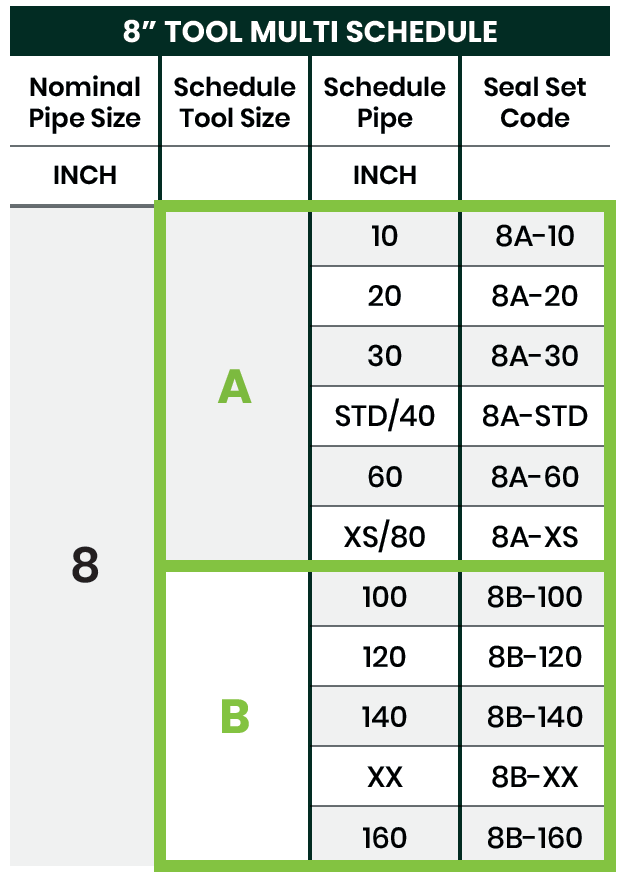

self-centering and isolation tool piping coverage chart

FEATURES

Dual-Purpose

Multi-Schedule

High Pressure

Light Weight

3/4" thru 40" ++

Custom Designs

MINIMIZE

Downtime

Third Party Call-Ins

Setup

Labour

Water & Liquid Usage
Less than 1 gallon

Greater Usability & Application Coverage
Less tools required covering the full range of schedules
Reach Max test pressure on every schedule (up to 5,000 psi)

Seal Backers

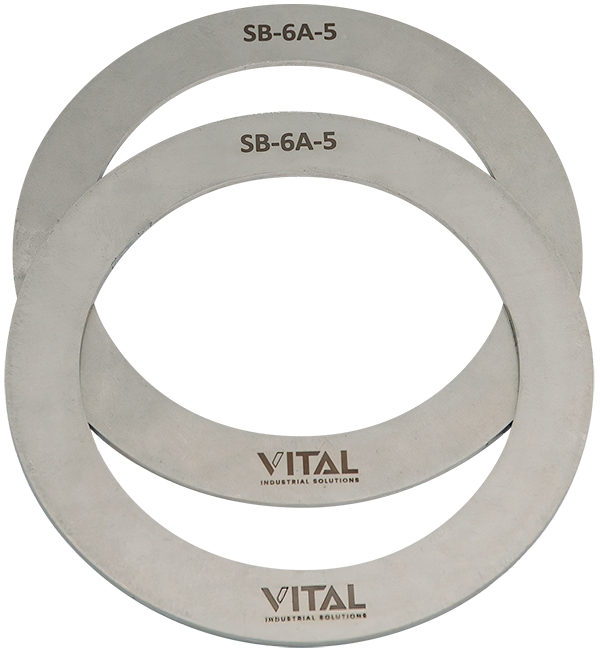

Seal Backers “Backing Rings” can be added to achieve highest test pressure possible.

Isolation in Elbow

Mismatched Schedules

Double Multi-Bolt Isolation on Tee

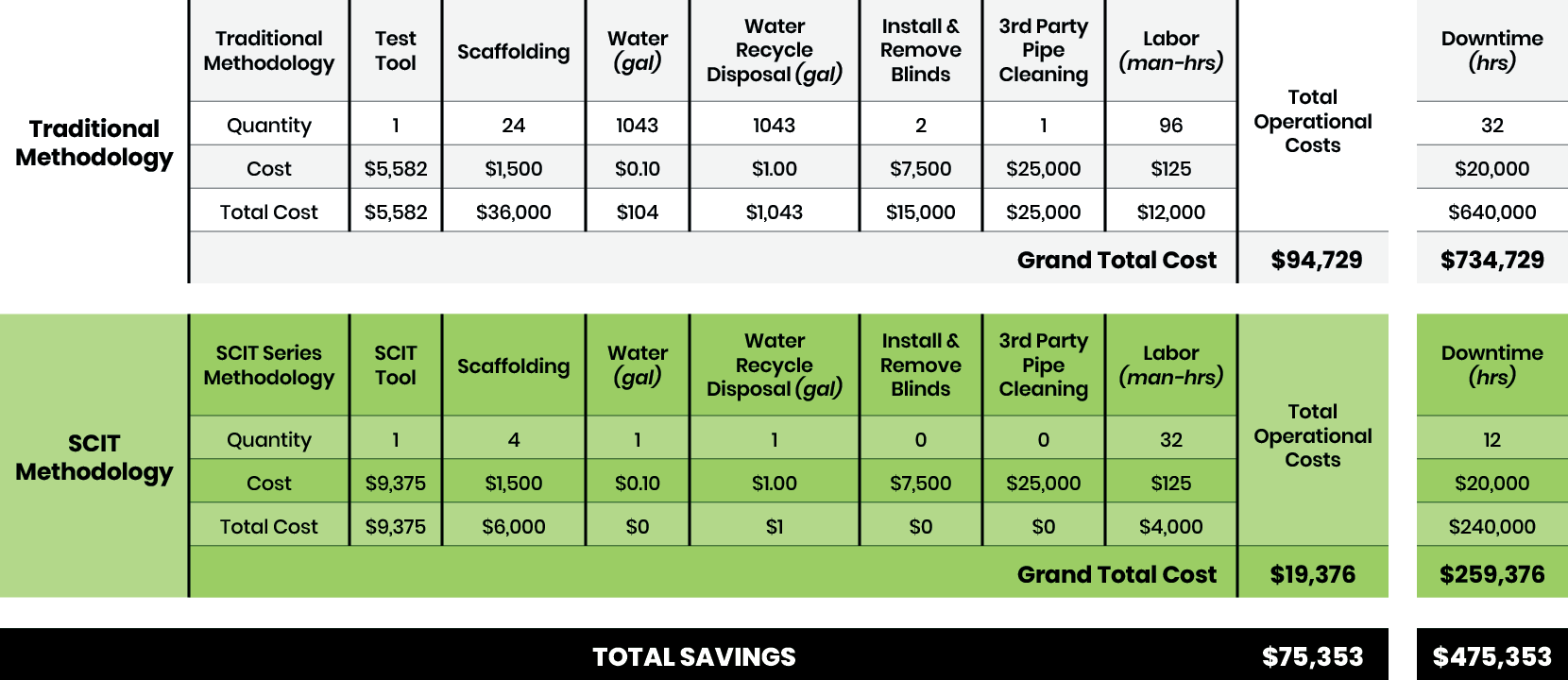

Cost Analysis Breakdown

The cost analysis breakdown is based on:

a typical 16" diameter pipe tie-in on a pipe rack, with an elevation 30 ft from grade
a typical 100 ft pipe run to the nearest valve, approximately 1,000 gallons of water

On a single turnaround, one Enerpac customer demonstrated savings of $470,000+ just for cleaning and testing operations alone. This did not include savings in scaffolding, wastewater, or downtime.
